Simple asterisk call manager

Updated: April the 27. 2006

Welcome to my simple asterisk call manager. Only a running HTTP server and perl is required for this call manager.
This distributed files are very basic and written from the scratch.
As I looked around for a simple call manager I didn't find anything like this. All I found were some huge programs, definitely an overkill for a small business.
So I decided to write my own call manager, and to distribute my scripts on the net. Please feel free to use, modify and improve them. Be so kind and mail me your improvements for future releases.

Warning: Those scripts are distributed as they are.

Features

All you need is a web browser
Different users share one global directory
Every user has its own personal directory and its local phone number
A simple click on an entry dials the number, sends an SMS or deletes it
Missed calls will be displayed. This entries will be deleted, if you had an successful connection to this number.
Phone numbers from incoming calls will be looked up in every stored phone book and in public directories.
Own number and name are just parameters in the URL (i. e. http://192.168.0.5/cgi-bin/cm.cgi?SIP/200,john)

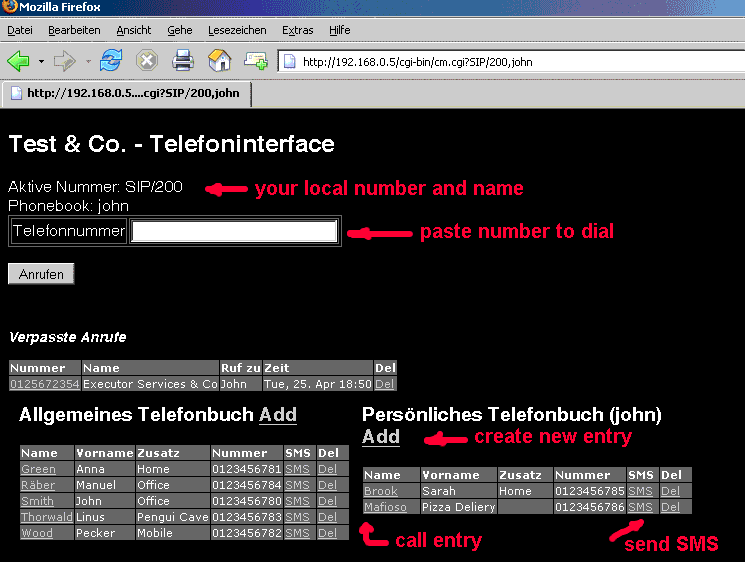

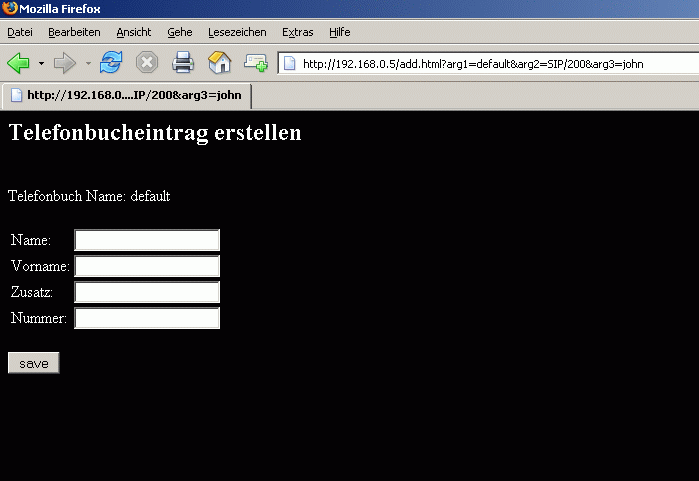

Screenshots

Download

asterisk call manager 0.1beta

Installation

make an temp directory
tar zxf asterisk_call_manager_0.1beta.gz
mv all files in html to your root html directory (i. e. /var/www/html)
mv all files in cgi-bin to your cgi-bin directory (i. e. /var/www/cgi.bin)
mkdir cm-data under /var/lib/asterisk/
make asterisk the owner of this directory (chown asterisk:asterisk cm-data)
make sure asterisk have permission to read and write cm-data
mv all files in /var/lib/asterisk/cm-data to /var/lib/asterisk/cm-data/

Configuration of call manager files

I suggest you use as the data directory the default one. (/var/lib/asterisk/cm-data/)
So you have just to configure a few settings in the scripts.

cgi-bin/cm.cgi

company Title in main page
datadir where to store and read your directories (default /var/lib/asterisk/cm-data/)
As said before: installing in default will be a good idea
asthost must contain the ip address of your asterisk server

cgi-bin/call.pl

$context must contain your context to call you locally (i. e. from-internal). In other words, where your exten for SIP/200 is.

cgi-bin/put_entry.pl

$datadir same as above

cgi-bin/rm_bookentry.cgi

datadir same as above
asthost must contain the ip address of your asterisk server

cgi-bin/rm_missed_call.cgi

datadir same as above
asthost must contain the ip address of your asterisk server

cgi-bin/send_sms.pl

$smsprg asterisk's cmd line interface for sms handling
$smssvc SMS service centre number (including channel). i. e. SIP/0800800800@yourprovider
$aeracode trailing part for SMS caller ID ($aeracode + [match from cid.lst] = outgoing caller ID)

/var/lib/asterisk/cm-data/cid.lst

This file makes the link between internal SIP channels and external callerID. An entry of SIP/202;124324 makes outgoing calls originated from SIP/202 with the callerID 124324.

semicolon separated list of channel;callerID

/var/lib/asterisk/cm-data/<username>.lst

Make sure a file <username>.lst exists for every user.

/var/lib/asterisk/agi-bin/lookup_ch.agi

This script does a look up of incoming calls in local directories and in a public directory. If you use it outside Switzerland you have to modify the public part.

Make sure asterisk has read and execute rights (r-x)
datadir same as above

/var/lib/asterisk/agi-bin/put_missed_call.agi

Make sure asterisk has read and execute rights (r-x)
datadir same as above

/var/lib/asterisk/agi-bin/rm_missed_call.agi

Make sure asterisk has read and execute rights (r-x)
datadir same as above

Configuration of asterisk's extensions.conf

As well for looking up in public and local directories, as for handling missed calls you have to add some lines in your extensions.conf

Example for an incoming exten

Lets assume, John has got the external number 123456789. Inserting these lines in the correct context will lookup the caller ID, displays it on John phone, and prepare some variables for the missed call handler:

exten => 123456789,1,AGI,lookup_ch.agi| ${CALLERIDNUM}
exten => 123456789,2,Set(CallerNum=${CALLERIDNUM})
exten => 123456789,3,SetCIDNum(${LONGNAME})
exten => 123456789,4,SetCIDName(Call to John)
exten => 123456789,5,Set(CalledNum=John)
exten => 123456789,6,Dial(SIP/200)
exten => 123456789,107,Busy

The missed call handler needs the following lines in the same context as the lines above (but only once) :

exten => h,1,Set(result=${DIALSTATUS})
exten => h,2,GotoIf($["${RESULT}" = "CANCEL"]?3:5)
exten => h,3,DeadAGI(put_missed_call.agi|${CalledNum}|${CallerNum}|${LONGNAME})
exten => h,4,Goto(100)
exten => h,5,GotoIf($["${RESULT}" = "ANSWER"]?6:100)
exten => h,6,DeadAGI(rm_missed_call.agi|${CallerNum})
exten => h,100,NoOp

Do not forget to include the h extensions also in the outgoing context (i. e. from-internal). This allows the missed call handler to remove successful calls made originated from you.

Using

Just enter in your browser:

http://ip.add.re.ss/cgi-bin/cm.cgi?<channel>/<nmbr>,<username>

i. e. http://192.168.0.5/cgi-bin/cm.cgi?SIP/200,john
